Overview
PN: 800-DCSS-AB-APC

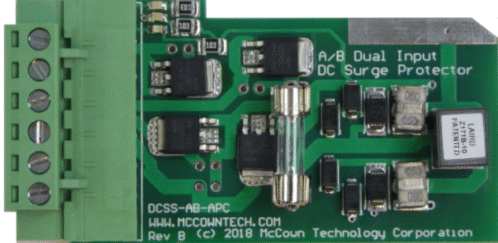

Rack Mount Dual Feed A/B DC Power Line Surge Protector
Combine and protect two inputs to feed one device. Diode isolation.
Dual inputs to protect and combine two redundant power sources.
6-56 VDC operation.
Gas Discharge Tube design to be used with the popular PRM4 and PRM24 1RU Rack Mount Chassis made by APC. We also sell a PRM4 4 slot rack that is Din Rail Mount.
DC dual input powerline surge suppressor – protector. Combines and protects inputs and output separately. Lumped inductance between input and output shunts surges coming from either direction to ground while impeding their flow to the other side of the device. Both semiconductor surge suppression and Gas Discharge Tube for fast and large surge protection. Double Multi-Stage protection devices provide 4 X the protection of conventional protection devices.
Outdoor Mount Version
Read more at: www.surge-protection.org
Click on the "How to Buy" button (at top of page) for our distributor list. You will receive a better price when buying from our distributors. Frequently they will have stock when this site shows low or no stock.
We are also known as: Wireless Beehive, Wireless Beehive Manufacturing and sometimes Beehive Wireless. See us at at Animal Farm during WISPAmerica
Tech Spec
| Weight |
0.35 lbs |
| Dimensions |
3.170 × 1.655 in |
Specifications
7 Amp maximum output
6-56 VDC operation
Electrical Specifications
- Operating Voltage
- 0-55 VDC
- Clamping Voltage:
- 69 Volts
Features & Applications
Features
- Protects Dual Input and Output separately
- Combines and diode isolates two inputs
- Lumped Inductance impedes surges from transiting the device
- Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
- Faster acting than Thyristor AND Gas Tube only designs
- Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
- Up to 7 amps
- Fuse on Positive
- LEDs show voltage on both sides of fuse
- Will work on + and – ground systems
Applications
Any DC powered equipment up to 55 VDC.
