Outdoor Tower/Wall Mount Combination 4 DC and 4 GigE Ethernet Surge Protector


PN: 800-4X4SS-TWR

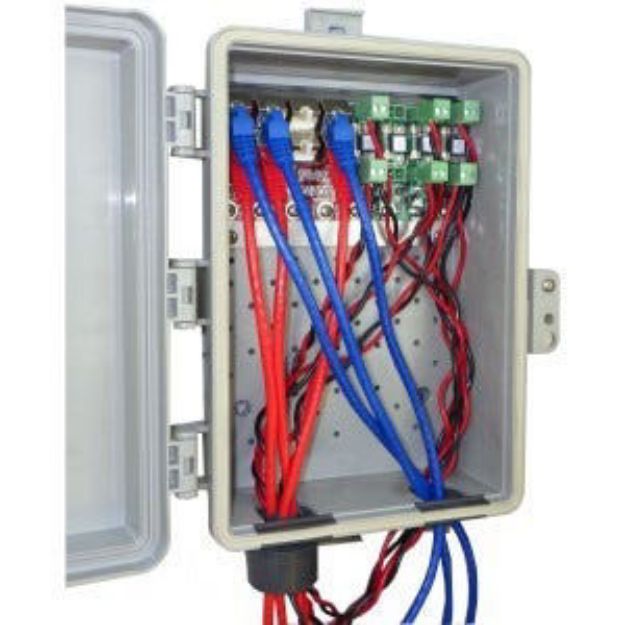

Outdoor Tower/Wall Mount Combination 4 DC and GigE 4 Circuit Ethernet Surge Protector

Protect up to 4 CAT5/c and 4 DC power circuits with one device.

This multi line protector is designed for outdoor use.  It is suitable for tower or wall mounting.

This device is designed to protect equipment such as APs and SMs installed at NOCs or tower sites where a number of devices are colocated.

This 100% Gas Discharge Tube version has the least amount of loading of all of our surge suppression products.  While slightly slower than our other solid state products it is more robust to ground sourced noise.  If CRC errors or Frame Check errors are being caused by a solid state surge suppressor this device will cure that problem when swapped for the solid state device.

Grounded and bonded shielded RJ45 jacks provide grounds to shielded plugs.

Individual surge suppression modules can be replaced.

Replacement module

Read more at: www.surge-protection.org

Click on the "How to Buy" button (at top of page) for our distributor list. You will receive a better price when buying from our distributors. Frequently they will have stock when this site shows low or no stock. We are also known as: Wireless Beehive, Wireless Beehive Manufacturing and sometimes Beehive Wireless. See us at at Animal Farm during WISPAmerica

Tech Spec

Weight 8.5 lbs
Dimensions 9 × 12 in


Electrical Specifications
1.8dB @ 1000Mhz
NEXT Increase:
Return Loss Decrease:
Clamping Voltage:
Standard Model – 3.8V Long 3.0 V Transverse
Clamping Voltage:
HV Model – 69 Volts
Mechanical Specifications
12 Inches
9 Inches
4 Inches
Net Weight:
8.5 lbs

Features & Applications


  • Compatible with all types of POE
  • 4  Individual Ethernet Circuit Protection
  • 4 Individual DC  Power Circuit Protection
  • Individual Field Replacable Modules
  • Shielded RJ45 Jacks on the Ethernet Connections
  • Pluggable Phoenix Style connectors on the DC circuits
  • Gas Discharge Tube Protection
  • POE timing glitch correction – eliminates CRC errors & speed reduction on some timing over POE systems
  • No air Back-Up-Gap (BUG) means extra long life and resistance to insect contamination
  • Ultra Low Capacitance Design – Zero Bandwidth Reduction
  • Internal or External Ground Connection
  • NEMA 4 Enclosure
  • Mounts to Wall or Tower
  • High-Speed Ethernet Surge Suppression Design


  • Installed at large colocation sites such as a NOC
  • Prevent damage to the AP and the other NOC equipment
