Outdoor 1000 Mbps Ethernet Surge Protector

5.00 out of 5

$35.95

Available!

Outdoor 1000 Mbps Ethernet Surge Protector

Overview

Outdoor Ethernet Surge Protector

Cat5 Data Line Surge Protector

PN: 800-GIGE-SS-HV

Outdoor 10/100/1000 Mbps GigE Ethernet Surge Suppressor

Outdoor 10/100/1000 Mbps GigE Ethernet Surge Suppressor

Both solid state surge components as well as a Gas Discharge Tube allow it to protect CAT5/6 circuits like no other

Outdoor mount GigE surge suppressor – protector. The circuit is similar to proven and popular 444SS suppression circuit and is identical to the GIGE-APC in design.

Proven Circuit

The proven and popular 444SS GDT/Avalanch Diode parallel hybrid design is what puts this circuit ahead of the others. (See ITU-T K.99)

The design provides protection for both common (longitudinal) and differential (transverse) mode surges.

Where a number of GigE devices are colocated becomes an ideal application for this Ethernet Surge Protector as a result of the 1RU size. The HV version supports 802.3af modes A and B. Shielded RJ45 jacks provide grounds and bonding to shielded plugs and shielded cables.

Shielded Connectors

This GIGE-SS Ethernet Surge Protector-Suppressor-Arrestor is a direct cross for 600SS and many other outdoor mount surge suppressors; however, this unit but is much more robust than most because of the shielded RJ45 jacks for industrial grounding/bonding and less loading  (low capacitance) for the long GigE circuits and greater protection from surges.

The design of this circuit does not employ Metal Oxide Varistors (MOV)s nor Back Up Gaps (BUGs); therefore it is both fast, durable and reliable!

It is simply a better circuit. Greater protection for your expensive equipment is provided by the GigE-SS Ethernet Surge Protector.

As previously mentioned, shielded and grounded jacks bond shielded CAT5 and CAT6 wiring to the building ground system. There are also multi stage surge elements that are designed specifically for demanding NOC and WISP environments. This product was invented at the request of our WISP customers who had had failures of the 600SS made by by Motorola.

This protector is compatible with 802.3af Power-over-Ethernet (PoE) circuits as well as passive POE systems.  It supports both PoE mode A and B for power.

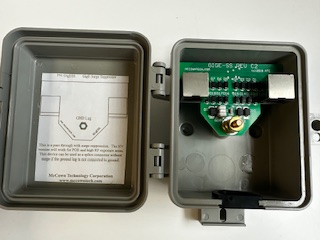

The compact weather resistant housing features a hinged cover and mounting holes are provided on the rear and the inside of the enclosure for mounting. The cable grommet may be adjusted to cable size and is removable.

Thousands of Outdoor GigE Ethernet Surge Suppressors are in use world wide by hundreds of customers

This protector is also available in the following versions: For indoor use with RJ45 Jacks, GIGE-APC-HV

Read more at: www.surge-protection.org on the science of surge protection and the nature of lightning induced surge voltages.



Click on the "How to Buy" button (at top of page) for our distributor list. You will receive a better price when buying from our distributors. Frequently they will have stock when this site shows low or no stock. We are also known as: Wireless Beehive, Wireless Beehive Manufacturing and sometimes Beehive Wireless. See us at at Animal Farm during WISPAmerica

Tech Spec

Weight 0.35 lbs
Dimensions 4.4 × 5.5 in

Specifications

Electrical Specifications
Attenuation
3dB @ 1000Mhz
NEXT Increase:
0.2dB
Return Loss Decrease:
0.3dB
Clamping Voltage:
4 Volts (HV Version 69 Volts)
Mechanical Specifications
Height:
5.5 inches
Width:
4.4 inches
Net Weight:
.35 lbs (.15kg)

Features & Applications

Features

  • GigE Ethernet surge suppression design with low clamp voltages
  • Shielded RJ45 connectors provide a ground to shielded plugs
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
  • Faster acting than Thyristor designs
  • Bi-Directional TVS provides full protection even during a destructive surge
  • CAT5, CAT5e and CAT6 compatibility
  • Reliable differential gas tube protection
  • Impact and weather resistant enclosure with locking hinged cover
  • POE compatible
  • GDT/Avalanch Diode parallel hybrid design. (See ITU-T K.99)
  • Lower loss and crosstalk than Thyristor based designs
  • Ethernet CRC error correction circuit
  • Tool-less entry
  • Cover is hinged
  • Dust tight
  • Back knockout feature for concealing wires
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min

Applications

  • Backhaul radios
  • Installed at outdoor tower colocation sites
  • Use the HV version for sites with high power (100 watts and over) RF exposure to the CAT5 and for 802.3af circuits.
  • 10/100/1000 Base-T Gigabit Ethernet Equipment
  • Wireless Access Points & Bridges
  • Wireless Client Adapters
  • IP Cameras with POE

Downloads & Links

Application Chart

Application Data

Schematic

Terms, Conditions and Warranty

1 review for Outdoor 1000 Mbps Ethernet Surge Protector

  1. 5 out of 5

    George Skorup

    From: George Skorup
    Sent: Monday, May 01, 2017 4:56 PM
    To: af@afmug.com
    Subject: Re: [AFMUG] GIGE-APC Surge suppressors

    We either had a really bad power surge or a very close lightning strike at our NOC over the weekend. No visible signs of a direct strike to the tower. I’m leaning towards the power surge since other networked things in the office died, and our office telco/network closet is uplinked to the server room via a pair of fiber. Railroad stuff was all messed up at several crossings. And other businesses nearby lost various electronics as well.

    Two AF24’s and an AF5. GigE-APCs at the bottom weren’t burned up, but were obviously dead. The AF POE injectors all shut down when plugged into them. The GigE-SS’s on top apparently stopped the surge from hitting the radios. After I bypassed the GigE-APCs at the bottom, the ethernet links would only run at 100Mbps, plus errors. After bypassing the GigE-SS’s on top this morning, all three are running GigE again with no errors. So that saved a lot of work today.

    However, it wasn’t so good for the 5GHz 450i cluster at the top. Don’t know how, but one survived. We relied on the 450’s built-in suppression at the top. Didn’t happen. The GigE-APCs were all dead. So yeah, you should probably just run GigE-SS’s near a radio, even if it claims surge suppression is built in.

    The PacketFlux PowerInjector+Sync had two of the ports with visible damage on the board. Took out the SiteMonitor Base unit with it. Forrest, if you want these for failure analysis, just let me know. I’d be happy to send them to you. When I got the office, the green LED was flashing 2, and I believe port #2 was a damaged one. It also took out all four of those ports on the CCR1036.

    I’ve seen similar events over the years and this clearly looks like bottom up, i.e. utility surge. And of course the one thing I forgot after doing the generator and transfer switches…. the f’n whole panel surge suppressor. I would’ve moved the existing one over to the other panel, but I needed different breakers.

    Bottom line, use MTC surge suppressors top and bottom and your life will be better.*
