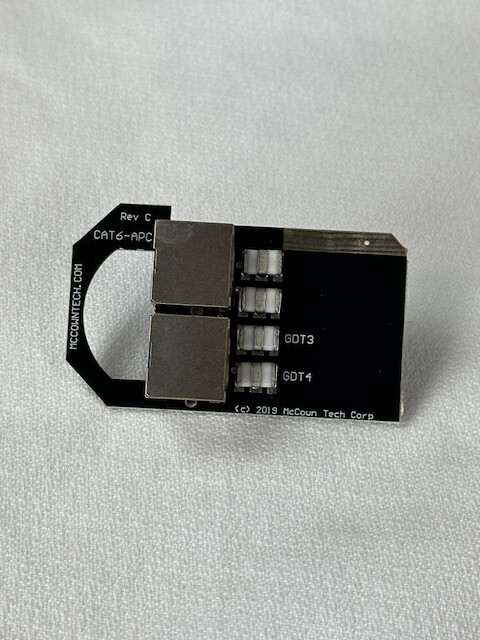

CAT6 100% Gas Discharge Tube Rack Mount Surge Protector

0 out of 5

$18.95

Out of stock

CAT6 100% Gas Discharge Tube Rack Mount Surge Protector

Overview

Rack Mount

PN: 800-CAT6-APC

100% Gas Discharge Tube design to be used with the popular   PRM4 and PRM24 1RU Rack Mount Chassis made by APC.  We also sell a PRM4 4 slot rack that is Din Rail Mount.

This CAT6-APC Ethernet Surge Protector-Suppressor-Arrestor is ideal for the hard to access or frequently visited places.  This design uses GAS Discharge Tubes to allow for a very robust and multiple strike survivability.  It typically will provide many years of reliable service.

Proven Circuit

The proven Gas Discharge Tube based,  balanced differential stripline design is what puts this circuit ahead of the others. (See ITU-T K.99)

Where a number of GigE devices are colocated becomes an ideal application for this Ethernet Surge Protector as a result of the 1RU size. This version supports 802.3af modes A and B. Shielded RJ45 jacks provide grounds and bonding to shielded plugs and shielded cables.

Shielded Connectors

This CAT6-APC Ethernet Surge Protector-Suppressor-Arrestor is a direct cross for the APC PNET6TR; however, this unit but is much more robust because of the shielded RJ45 jacks for industrial grounding/bonding and less loading for the long GigE circuits and greater protection from surges.

The design of this circuit does not employ Metal Oxide Varistors (MOV)s nor Back Up Gaps (BUGs); therefore it is both fast, durable and reliable!

It is simply a stronger circuit. Greater protection for your expensive equipment is provided by the CAT6-APC Ethernet Surge Protector.

As previously mentioned, shielded and grounded jacks bond shielded CAT5 and CAT6 wiring to the building ground system.   This product was invented at the request of our WISP customers who had had failures of the PNETR6.

Outdoor Version Available

This is the rack mount version of the outdoor product CAT6-SS.

Read more at: www.surge-protection.org on the science of surge protection and the nature of lightning induced surge voltages.

Click on the "How to Buy" button (at top of page) for our distributor list. You will receive a better price when buying from our distributors. Frequently they will have stock when this site shows low or no stock. We are also known as: Wireless Beehive, Wireless Beehive Manufacturing and sometimes Beehive Wireless. See us at at Animal Farm during WISPAmerica

Tech Spec

Weight .25 lbs
Dimensions 6 x 6 x 3 in

Specifications

Electrical Specifications
Peak Current
           0.50 kAmps
Attenuation
2dB @ 1000Mhz
NEXT :
>30dB
Return Loss :
>10dB
Data Circuits – 90 volts
Data Line Protection
          RJ45 10/100/1000 Base-T Ethernet Protection
Mechanical Specifications
Height:
1.76 inches
Width:
3.2 inches
Net Weight:
0.039 lbs
UL 497B components used throughout

Features & Applications

Features

  • CAT6 1000 Bast T Ethernet surge suppression
  • Fits the APC PRM24 and PRM4 line of chassis for replaceable data line surge protection
  • Shielded RJ45 connectors provide a ground to shielded plugs
  • Ultra fast suppression – typically less than 1.0us from 0 Volts to BV min
  • Gas Discharge Tubes – Extremely robust multiple strike survivability.
  • GDT microwave stripline design. (See ITU-T K.99)
  • Lower loss and crosstalk than Thyristor based designs

Applications

  • Installed at large colocation sites such as a NOC
  • Remote AP sites
  • Tower cabinets
  • Hard to access areas
  • Unattended installations
